Check that the antenna is screwed into the controller as far as it will go. Then pull out the antenna completely. Use the transparent antenna tube included in the packaging for the antenna on the vehicle (depending on the model).

Open the vehicle chassis and clean the axles to remove dust and hair. Also apply a drop of oil (resin- and acid-free grease) to the axles.

If, when operating the Carrera RC 2.4 GHz DIGITAL-PROPORTIONAL vehicle, it turns out that the car is moving forwards or backwards on its own, it can be brought to a standstill as follows:
1) Turn the vehicle around so that the wheels are in the air.
2) First switch the vehicle on using the ON/OFF switch. The LED on the top of the vehicle flashes rhythmically. Switch on the controller. The LED on the controller flashes rhythmically. After a few seconds, the LEDs on the vehicle and the controller light up permanently. The binding is now complete.
3) Press the button on the top right-hand side of the controller for approx. two seconds. The adjustment mode is active as soon as the controller LED flashes. (See picture)
4) The forward or reverse movement can be brought to a standstill with the left joystick.
5) To complete the adjustment process, press the button on the top right-hand side of the controller again for approx. two seconds - the LED now lights up permanently.

Proceed as follows if your 2.4 GHz DIGITAL-PROPORTIONAL model pulls to the right or left:
1) Turn the vehicle over so that the wheels are in the air.
2) First switch the vehicle on using the ON/OFF switch. The LED on the top of the vehicle flashes rhythmically. Then switch on the controller. The LED on the controller flashes rhythmically. After a few seconds, the LEDs on the vehicle and the controller light up permanently. The binding is complete.
3) Press the button on the top right-hand side of the controller for approx. 2 seconds. The adjustment mode is active as soon as the controller LED flashes. (See picture)
4) The straight-ahead travel can be adjusted with the right-hand joystick.
5) To complete the adjustment process, press the button on the top right-hand side of the controller again for approx. two seconds - the LED then lights up permanently.

Yes, it is recommended to clean the Carrera RC vehicle after the ride to ensure smooth operation. Please ensure that you do not use any harsh solvents.

For 2.4 GHz Digital Proportional models:
The Carrera RC vehicle and the controller are bound at the factory. If there are problems with the communication between the Carrera RC vehicle and the controller at the beginning, please perform a new binding. Press the bind button on the underside of the chassis to rebind the Carrera RC vehicle and the controller. The bind button must be pressed for at least 3 seconds. Please note that both the controller and the Carrera RC vehicle must be switched on at the ON/OFF switch.
For 27 MHz models:
Make sure that nobody in your driving area is using the same frequency. To avoid this and so that the Carrera RC vehicle can be addressed by the controller, make sure that the same frequency (A/B/C) is set on the vehicle and on the controller. The vehicle's frequency switch is located in the battery compartment, the frequency switch on the controller is located on the top of the controller. Using different channels makes it possible to drive 3 vehicles at the same time.
The controller antenna should be pulled out completely. Then switch on the Carrera RC vehicle at the ON/OFF switch. The Carrera RC vehicle has two speeds: The ON/OFF switch can also be used to switch to training or indoor mode.
For 2.4 GHz Servo Tronic models:
First switch on the vehicle, then the LED on the top of the vehicle flashes rhythmically. You can then switch on the controller. Here too, the LED flashes rhythmically for a few seconds. As soon as the vehicle and the controller are bound, the status LEDs on the vehicle and controller light up permanently.
Adjusting the steering: If, when operating the Carrera RC vehicle, it turns out that the vehicle is pulling to the right or left, the lane can be corrected using the adjustment switch on the underside of the vehicle.

Proceed as follows to correctly bind your Red Fibre® Carrera® Profi® (370183002/370183001) vehicles to the controller:
1) First switch on the vehicle
2) Then switch on the controller. When the LEDs on the vehicle and the controller light up constantly, the binding process is complete.

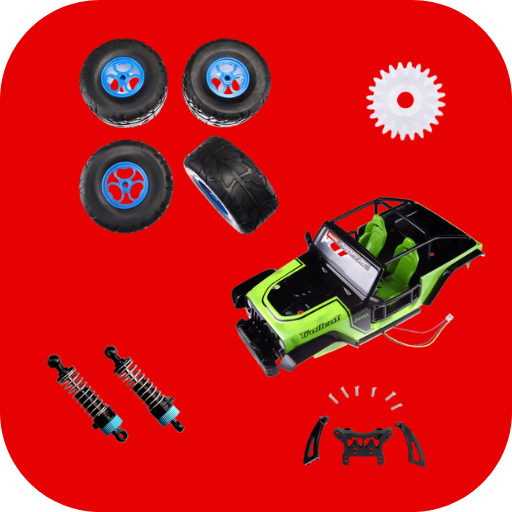

You can find all spare parts and accessories for the various professional RC models in our online store by entering the item number or name of your model in the search field. All suitable spare parts are displayed on the item detail page of the vehicle.

The individual parts can be identified quickly and easily with the help of the exploded view, whereby the exploded view is only available for professional models.

To put your Carrera Profi RC vehicle into operation, first switch the vehicle on using the ON/OFF switch. The LED on the vehicle flashes rhythmically. Then switch on the controller. After a few seconds, the LEDs on the vehicle and the controller light up permanently. Binding is complete.
The ON/OFF switch is located on the left-hand side of the vehicle, directly next to the battery compartment.

The correct frequency is printed on a sticker on the back of the controller and on the vehicle in the area of the drive axle.

Let the water drip off and dry your boat thoroughly after use. Use normal tap water to clean your boat. The contacts of the water sensors should be treated regularly with vinegar cleaner to prevent corrosion. Make sure that the vinegar cleaner does not come into contact with the propeller and rudder. This could lead to permanent damage.

How to drain your boat correctly:

Coast guard boat Falshöft (301001/301005)

Please open the two drain plugs at the bow and stern after every trip and drain any condensation water that has formed. Please make sure that you put the drain plugs back into the openings provided before each trip.

Ferrari boat Arno XI (300005)

There is a drain plug at the stern. Open this after every trip to drain the condensation water. Please make sure that you put the drain plug back into the opening provided before each trip.

Power Wave (300001)

You will find the drain button on the underside of the boat between the propeller and the sensor. Press it in with a blunt object until the condensation has drained out of the boat. As the drain button is spring-loaded, it will automatically return to its original position as soon as you stop pressing it in.

Please note that binding is only possible in the water for safety reasons. When starting up, first switch on the controller and then the boat. After the trip, follow the reverse order - switch off the boat first and then the controller.

Our boats are suitable for operation in normal to moderate waves in fresh water.
Should your boat nevertheless come into contact with dirty or salty water, it must then be thoroughly cleaned with normal tap water.

If the battery of your boat or vehicle has been connected correctly and the charging process is proceeding normally, the red LED will light up constantly. When the battery is fully charged, the red LED light switches to green. The battery can be removed and installed in the vehicle or boat.

If your Micro Quadrocopter (502002) does not take off despite a fully charged battery, please check whether the arrangement of the 4 rotor blades is correct. The letters are stamped on the top of the rotor blade. It is important to position the A/D rotor blades and the B/C rotor blades correctly.

Before your first flight, please check whether there is a statutory insurance requirement for model aircraft in your country. You can obtain further information from the German Model Flying Association. You are not allowed to do the following with your model aircraft:

• Fly near airfields (minimum distance 1.5 km)
• Fly over crowds of people, military objects, hospitals, power stations or prisons without a permit- Please ensure that you always maintain direct visual contact with the aircraft.
• Flying in windy and bad weather conditions and under the influence of drugs and alcohol is prohibited.

Please observe the following sequence to bind the controller to your helicopter correctly:
1. Switch on the helicopter.
2. Switch on the controller.
Exception: For the Sky Hunter (501001) and Red Eagle (501002), please observe this sequence:
1. Switch on the helicopter
2. Press the right control stick on the controller and then switch it on.

Affects the following helicopters:
Thunder Storm (501004)
Helicopter (501007)
Green Chopper (501003)
Orange Sply (501005)
Green Vecto (501008)
Red Buzzer (500001)
Micro Helicopter (502001)
The correct trim is the basic requirement for stable flight behavior of the helicopter. The tuning requires some patience and feeling.

Please observe the following instructions:
Carefully move the throttle lever on the controller upwards and allow the helicopter to climb approximately 0.3 to 0.8 meters in altitude.

If the helicopter turns to the left or right on the spot while hovering without moving the lever for tail (circular rotation), please proceed as follows: If the helicopter rotates quickly or slowly around its own axis to the left by itself, press the lower right trimmer for tail (circular rotation) on the controller gradually to the right. If the helicopter turns to the right, press the tail trimmer (circular rotation) gradually to the left.

If the helicopter hovers without moving the forward/backward lever forward or backward, please proceed as follows: If the helicopter moves forward quickly or slowly on its own, press the upper right trimmer for forward/backward on the controller gradually downwards. If the helicopter moves backwards, press the trimmer for forwards/backwards upwards step by step.

Applies to the following helicopters:
Sky Hunter (501001)
Spider Fox (501006)
The correct trim is the basic requirement for stable flight behavior of the helicopter. The tuning requires some patience and feeling.

Please observe the following instructions:
Carefully move the throttle stick on the controller upwards and allow the helicopter to climb approximately 0.3 to 0.8 meters in altitude.

If the helicopter is hovering without moving the right/left tilt lever to the left or right, please proceed as follows: If the helicopter moves quickly or slowly sideways to the left on its own, press the lower right trimmer for right/left tilt on the controller gradually to the right. If the helicopter moves to the right, press the right/left tilt trimmer gradually to the left.

If the helicopter turns to the left or right on the spot while hovering without moving the lever for tail (circular rotation), please proceed as follows: If the helicopter rotates quickly or slowly around its own axis to the left by itself, press the lower left trimmer for tail (circular rotation) on the controller gradually to the right. If the helicopter turns to the right, press the tail trimmer (circular rotation) gradually to the left.

If the helicopter is hovering without moving the forward/backward lever forward or backward, please proceed as follows: If the helicopter moves forward quickly or slowly on its own, press the upper right trimmer for forward/backward on the controller gradually downwards. If the helicopter moves backwards, press the trimmer for forwards/backwards upwards step by step.
